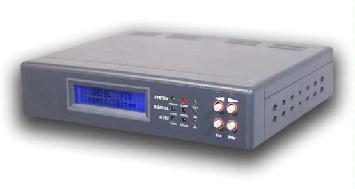

G.SHDSL - Modems up to 2 Mbit/s
The MODEM FAMILY 5000 offers four different ways to connect customers over high-speed DSL services; TDM based G.703 E1, TDM based serial DCE port, TDM based Ethernet Bridge or ATM based Ethernet Bridge/Router.
MODEM FAMILY 5000 is equipped with an adaptive auto rate capability that identifies the maximum line rate supported by the copper loop. This powerful automatic configuration capability makes installation and service provisioning simple and painless. Further flexibility is provided by the ability to manually set the maximum speed at different levels for different customer-tailored service offerings.
Features
Meets ITU-T and ETSI Standards; E1 complies with ITU-G.703, G.704, G.706, G.732 and G.823 Single-pair operation - with a maximum user data rate of 2.304Mbps (2.048Mbps for E1) Each line card supports two channels of single pair (twowire) application on E1/Datacom/Ethernet solution N x 64k rate selectable from 64kbps to 2.304Mbps E1 and fractional E1 capable Menu oriented craft screens for ease of use Remote configuration of CPE device Optional SNMP network management system card Downloadable software for easy upgrade Central solution in standard 19 inch rack Up to 13 cards can be installed Hot swappable cards and redundant power supplies (optional)
Supply options: AC x 2, DC x 2, or AC + DC
All interface connectors on the rear panel
Specifications
Datacom Interface - TDM Based
V.35, RS-449, RS-530, X.21 (optional)
Data Rate : 64kbps to 2304kbps
Connector : HD26 (adapters available)
Timing : Internal, External, and Recovery
Ethernet Interface - TDM Based
Supports 10/100Base-T auto sensing half/full duplex
Complies with IEEE 802.3/IEEE 802.3u
Operates as a self-learning bridge in transparent mode
Supports up to 128 MAC learning addresses, HDLC encapsulation
E1 Interface -TDM Based
Line code: HDB3/AMI
Data rate: 64kbps to 2048kbps
Operation: Full or Fractional
Impedance: 120 ohms balanced / 75 ohms unbalanced
Framing: Structured with or without CRC-4 or unstructured
(transparent)
Timing: Internal or G.703 recovery
Compliance: ITU-T G.703, G.704, G.706, G.821, G.823, G.826, CTR12 , Jitter performance : ITU-T G.823
I/F connections : BNC for unbalanced, 5 pin wire connector or RJ-45 for balanced
Transmit level
Pulse amplitude: Nominal 2.37V+10% for 75 ohm Nominal 3.00V+10% for 120 ohm
Zero amplitude: +0.1V
Transmit frequency tracking:
Internal timing : +/- 30ppm
Loopback timing : +/- 50ppm
External timing : +/- 100ppm
Ethernet Interface - ATM Based
Supports 10/100Base-T auto sensing half/full duplex Complies with IEEE 802.3/IEEE 802.3u
Bridging or routing supported
PPPoE, PPPoA, IPoA or EoA encapsulations
In-band, embedded SNMP
SHDSL Interface
Line code : 16 level Trellis coded PAM
Line data rate : User selectable from 64kbps to 2.304Mbps
Support : ANSI (Annex A) and ETSI (Annex B)
Support wetting current : 4mA-20mA
Compliance: ITU-T G.991.2
Available Line Card Options
LEDs indication
E1: PWR, SHDSL, FE1, LOF, LOS, TEST, LOOP, ALARM, and FAR ALARM
V.35: PWR, SHDSL, TD, RD, CTS, TEST, LOOP, ALARM, and FAR ALARM
Ethernet: PWR, SHDSL, 10M/ACT, 100M/ACT, COL, TEST, LOOP,
ALARM, and FAR ALARM
Performance
SHDSL PM : ES-crc, SES-crc, UAS, LOSW seconds
E1 PM : ES, SES, UAS seconds
Current 15-minute period and 96 previous 15-minute periods of SHDSL and E1 performance parameters
Current 24-hour period and 7 previous 24-hour preiods of SHDSL and E1 performance parameters
Diagnostic
E1 line loopback, V.54 loopback
Local SHDSL loopback,Remote SHDSL loopback Remote payload loopback
Specifications are subject to change without notice.
SHDSL Modems Concentrator
SNMP Card AC Power Card
Model 5000-E1/2T G.SHDSL (2Loop/2W) to E1 (2Channels) TDM based Line Card with E1 Connector (HD26 to RJ45) & RJ45 to BNC cable.
Model 5010-V35/2T G. SHDSL (2Loop/2W) to V.35 (2Channels) TDM based Line Card .
Model 5010-530/2T G.SHDSL (2Loop/2W) to RS-530/RS-449/X.21 (2Channels) TDM based Line Card.
Model 5020-ET100/2T G.SHDSL (2Loop/2W) to 10/100Base-TX Bridge (2Channels) TDM based Line Card with Ethernet connector (HD26 to RJ45).
Model 5030-ET10R/2A G. SHDSL (2Loop/2W) to 10/100Base-TX Router (2Channels) ATM based Line Card.
